JCJST5-100 Round Bar Rebar Straighten and Cutting Machine with Customization Options

Name: JCJST5-100 Round Bar Rebar Straighten and Cutting Machine with Customization Options
Brand: JCJST5-100 Round Bar Rebar Straighten and Cutting Machine with Customization Options
SKU: JCJST5-100 Round Bar Rebar Straighten and Cutting Machine with Customization Options
Rating: 4.8 (107 reviews)

All Products

Garage Roller Shutter Door
(41)

Metal Roller Shutter Door
(10)

Automatic Roller Shutter Door
(52)

Insulated Garage Door
(6)

Fast Door
(12)

Industrial Door
(6)

Steel Magnetic Chamfer
(147)

Metalworking Fluid
(3)

Metal Straightening And Cutting Machine
(116)

Certification

I'm Online Chat Now

JCJST5-100 Round Bar Rebar Straighten and Cutting Machine with Customization Options

Large Image : JCJST5-100 Round Bar Rebar Straighten and Cutting Machine with Customization Options

Product Details: Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Delivery Time:	Peak Season Lead Time: one month, Off Season Lead Time: within 15 workdays
Payment Terms:	LC, T/T, PayPal, Western Union, PINGPONG

Contact Now

JCJST5-100 Round Bar Rebar Straighten and Cutting Machine with Customization Options

Description

Model NO.:	JCJST5-75, JCJST5-85, JCJST5-100	Warranty:	12 Months
Customized:	Non-Customized	Condition:	New
Transport Package:	Wooden Case	Trademark:	JCJS
Origin:	China	HS Code:	846150
Supply Ability:	10000 Set/Year	Type:	Rotating Anti-Bending And Straightening Machine
Usage:	Bar	Voltage:	380V
Automatic Grade:	Automatic	Principle:	Small Deformation
Certification:	CCC, ISO9001	Customization:	Available \| Customized Request

The steel bar straightening and cutting integrated machine is mainly used for straightening and cutting to length cold-rolled ribbed steel bars for construction, hot-rolled grade III steel bars, cold-rolled round steel bars, and adjustable straight hot-rolled round steel bars. This machine has a high degree of automation, fast traction speed, continuous working mode, and is equipped with an automatic counting stop device, and has good safety performance. The wire surface after the straightening of this machine is basically free of scratches, low strength loss, and good straightness , At the same time, it has the characteristics of simple operation, convenient adjustment and cutting, simple blanking, and high efficiency.

Main Technology Parameter:

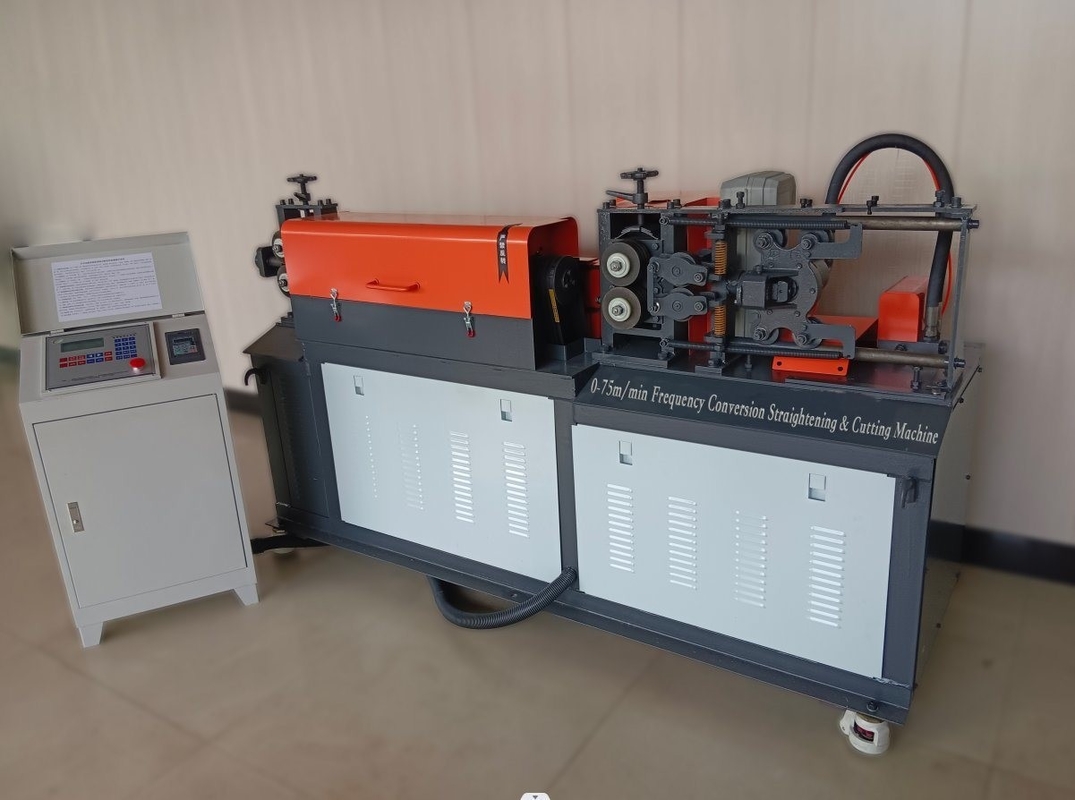

Model:JCJST5-75: (0-75m/min frequency conversion)
Cutting Coil Steel Bar Dia:	Φ5 - Φ12mm	Moter Power:	11KW + 4KW
Cutting Coil Steel Bar Dia:	Φ5 - Φ12mm	Voltage:	380V
Cutting Rebar Dia:	Φ5 - Φ10mm	Straight Line Speed:	0-75m/min
Cutting Tolerance:	±5mm	Minimum cutting length:	10mm
Weight:	1000KG	Size:	22008001350

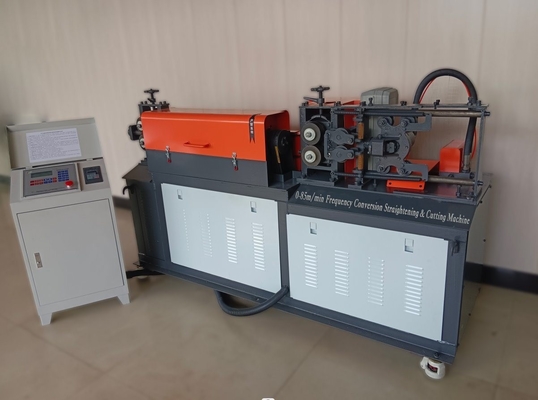

Model:JCJST5-85: (0-85m/min frequency conversion)
Cutting Coil Steel Bar Dia:	Φ5 - Φ12mm	Moter Power:	11KW + 4KW
Cutting Coil Steel Bar Dia:	Φ5 - Φ12mm	Voltage:	380V
Cutting Rebar Dia:	Φ5 - Φ10mm	Straight Line Speed	0-85m/min
Cutting Tolerance:	±5mm	Minimum cutting length	10mm
Weight:	1000KG	Size:	22008001350

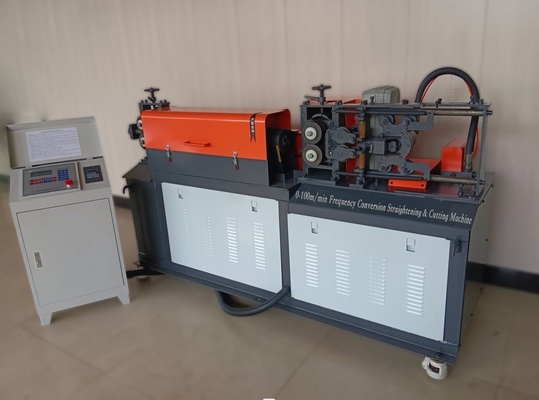

Model:JCJST5-100:(0-100m/min frequency conversion)
Cutting Coil Steel Bar Dia:	Φ5 - Φ12mm	Moter Power:	15KW + 5.5KW
Cutting Coil Steel Bar Dia:	Φ5 - Φ12mm	Voltage:	380V
Cutting Rebar Dia:	Φ5 - Φ10mm	Straight Line Speed	0-100m/min
Cutting Tolerance:	±5mm	Minimum cutting length	10mm
Weight:	1100KG	Size:	22008001350

Business Mission: Quality first, Reputation first, Integrity first, recommend all kinds of high-quality products to the society, and serve enterprises in all walks of life.

Service Commitment: Provide all kinds of high-quality (bars, rods, angles, shapes and sections of steel )and related products, comply with the highest ethical standards, and strive to provide unique products and high-level services.

Our company adheres to the business philosophy of "customer first, forge ahead", and adheres to the principle of "customer first" to provide our customers with high-quality services.

May our company and colleagues from all walks of life, friends and distinguished customers go hand in hand, develop together, and draw a grand blueprint for the new century.
